PBC Series PBC110m PBC130m

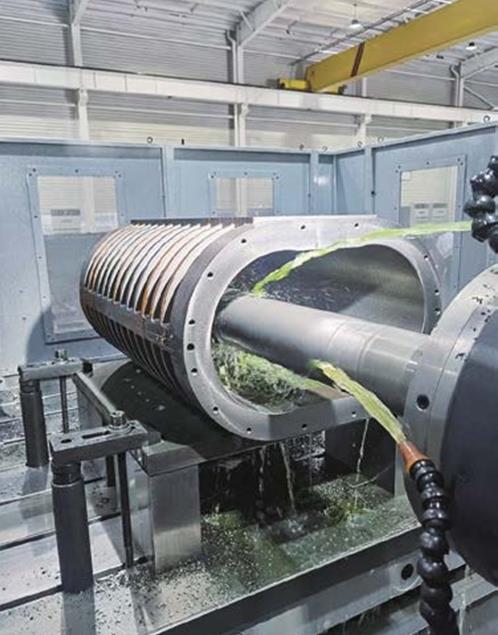

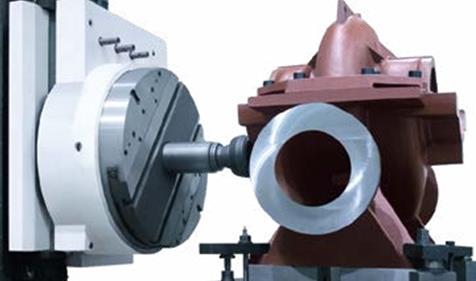

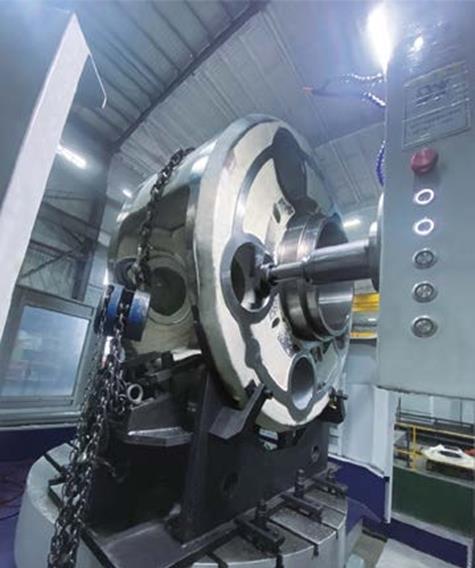

This machine tool integrates various machining capabilities such as boring, milling, drilling (including drilling, reaming, and reaming), rigid tapping, and countersunking. Paired with a high-performance CNC system, it can achieve core motion control functions such as linear interpolation and circular interpolation.

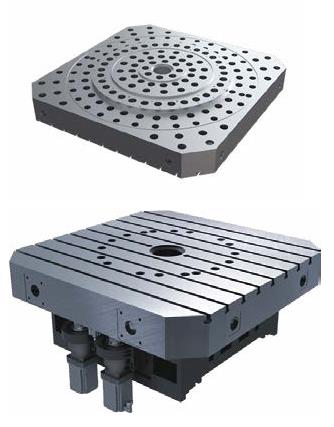

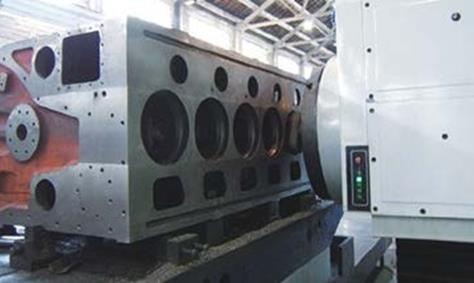

The configured CNC rotary worktable supports multi process continuous machining of hole groups, hole systems, and end faces in four planes after a single clamping of the workpiece.

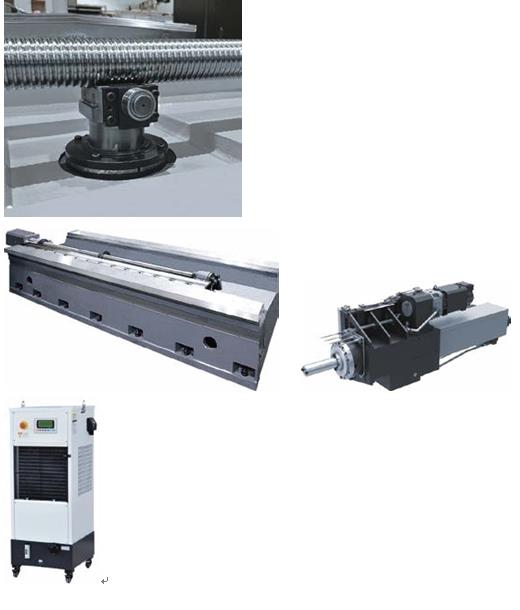

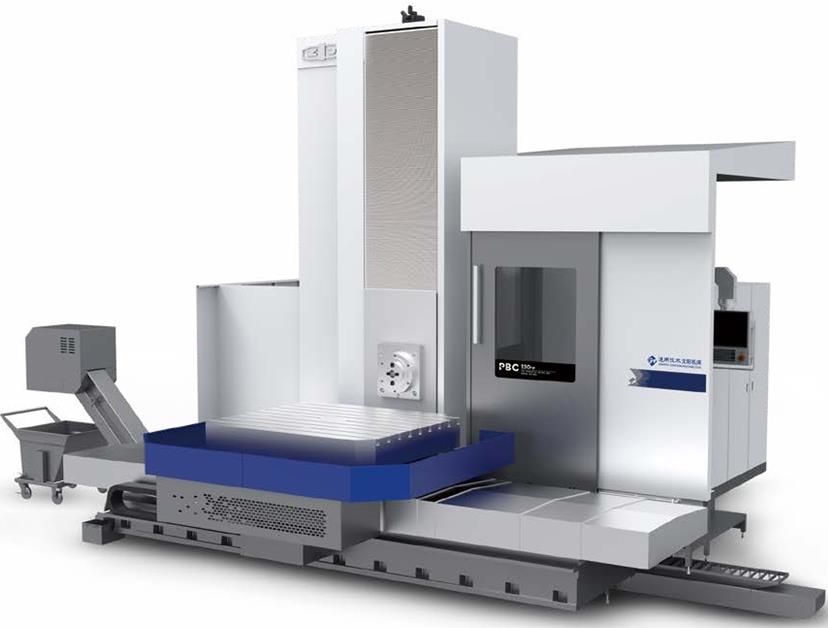

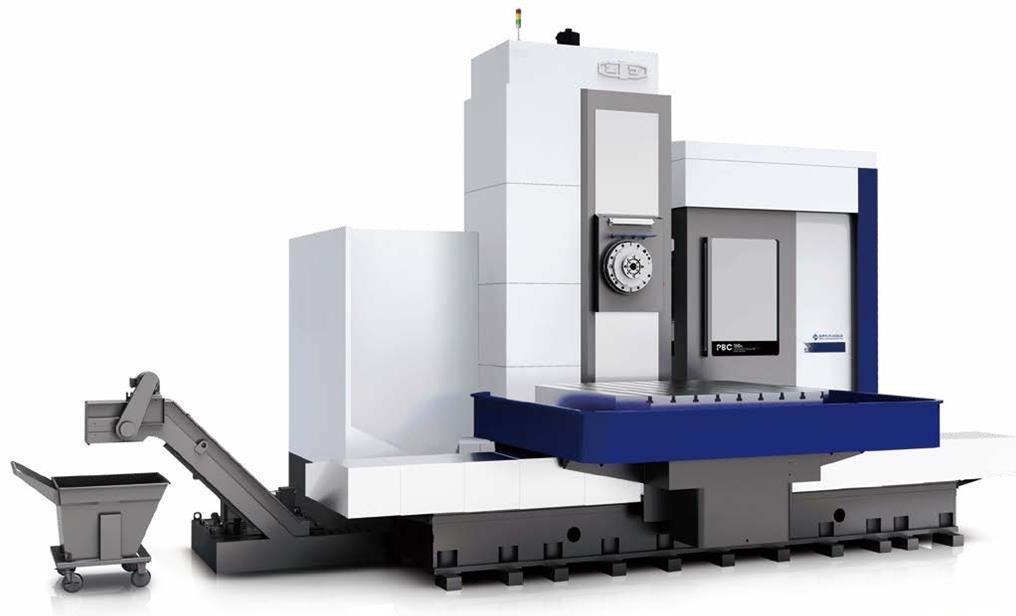

The whole machine adopts a T-shaped layout and a single column side mounted spindle box structure: the worktable and slide seat complete X-axis movement along the transverse guide rail of the bed, the column fixed on the slide seat realizes Z-axis feed along the longitudinal guide rail of the bed, and the spindle box moves vertically along the Y-axis along the column guide rail; The CNC worktable supports 360 ° full rotation (B-axis), and the boring axis can complete the W-axis axial feed inside the milling axis.
