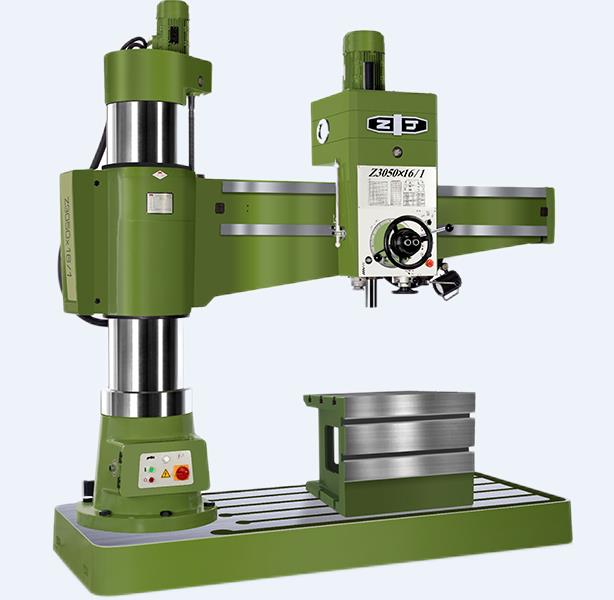

Z3050 X16 Radial Drilling Machine

Full-scenario machining adaptation: This equipment can handle precision machining operations for drilling, reaming, tapping, countersinking, and thread cutting across all categories, catering to diverse production requirements.

Hydraulic Pre-selection Stepless Speed Regulation: Equipped with a hydraulic speed-changing pre-selection system, it allows flexible switching of processing speeds as needed, significantly enhancing operational adaptability across different processes.

Global Hydraulic Clamping Enablement: Leveraging hydraulic power output to provide stable and reliable clamping force assurance for core components across the entire equipment chain.

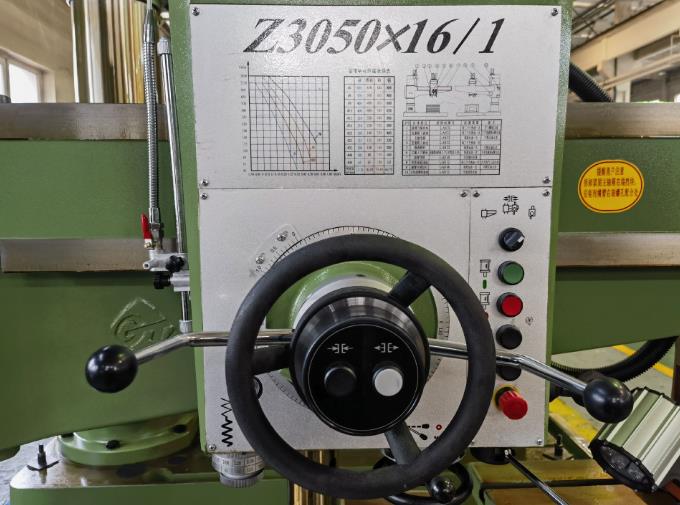

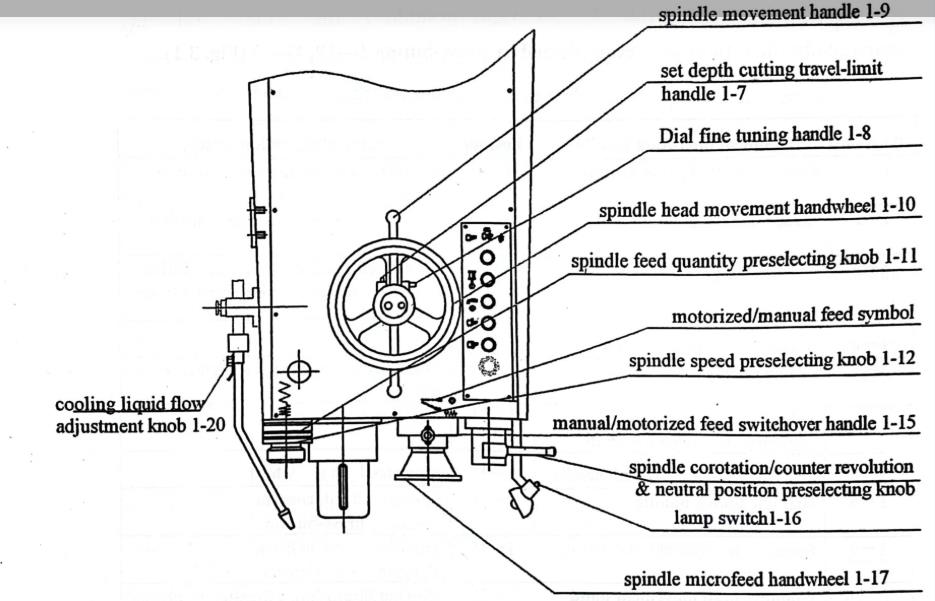

Integrated control layout: The mechanical, electrical, and hydraulic control modules are highly integrated into the spindle housing, featuring short operational pathways, rapid response, and a balance of convenience and operational efficiency.

One-Handed Forward and Reverse Operation Design: Both forward and reverse switching actions can be completed with one hand, significantly simplifying the operation process and reducing the workload on operators.

Dual-column high-rigidity structure: The entire machine adopts a dual-column support framework, enhancing operational stability at the structural level to ensure high-precision output for long-term machining.
