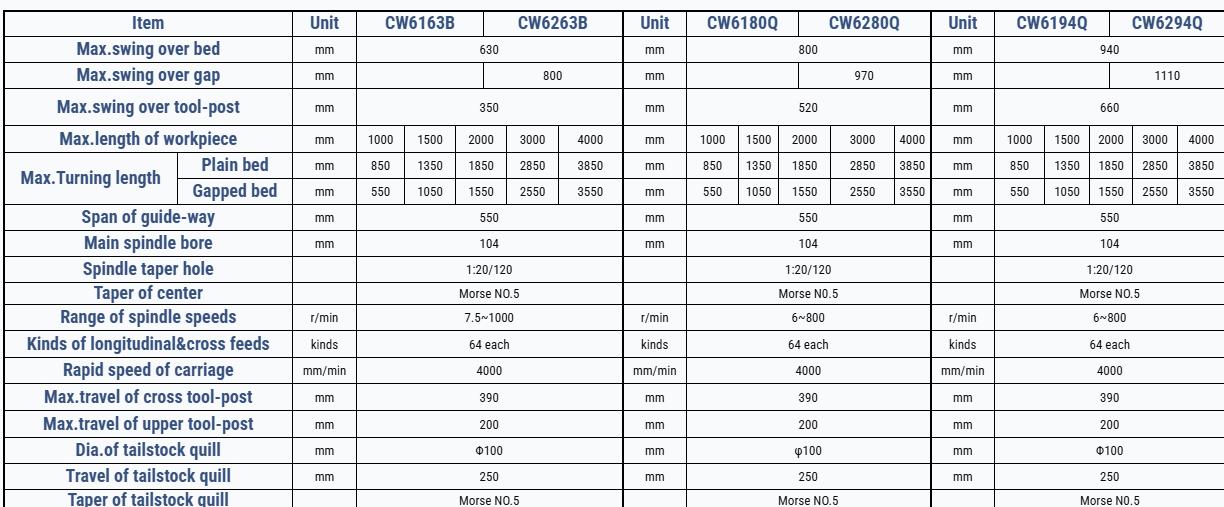

CW6163,CW6263,CW6180,CW6280,CW6194, CW6294,CW61100,CW61125,CW61140,CW61160

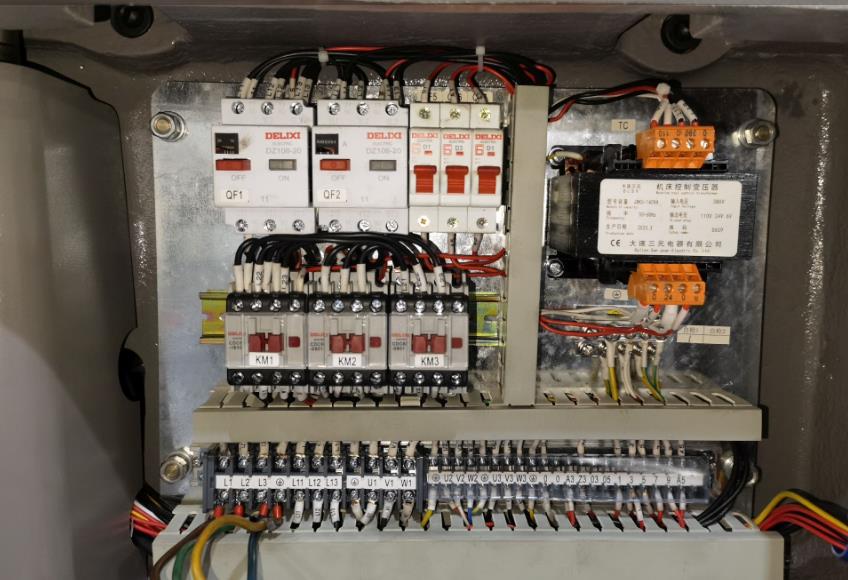

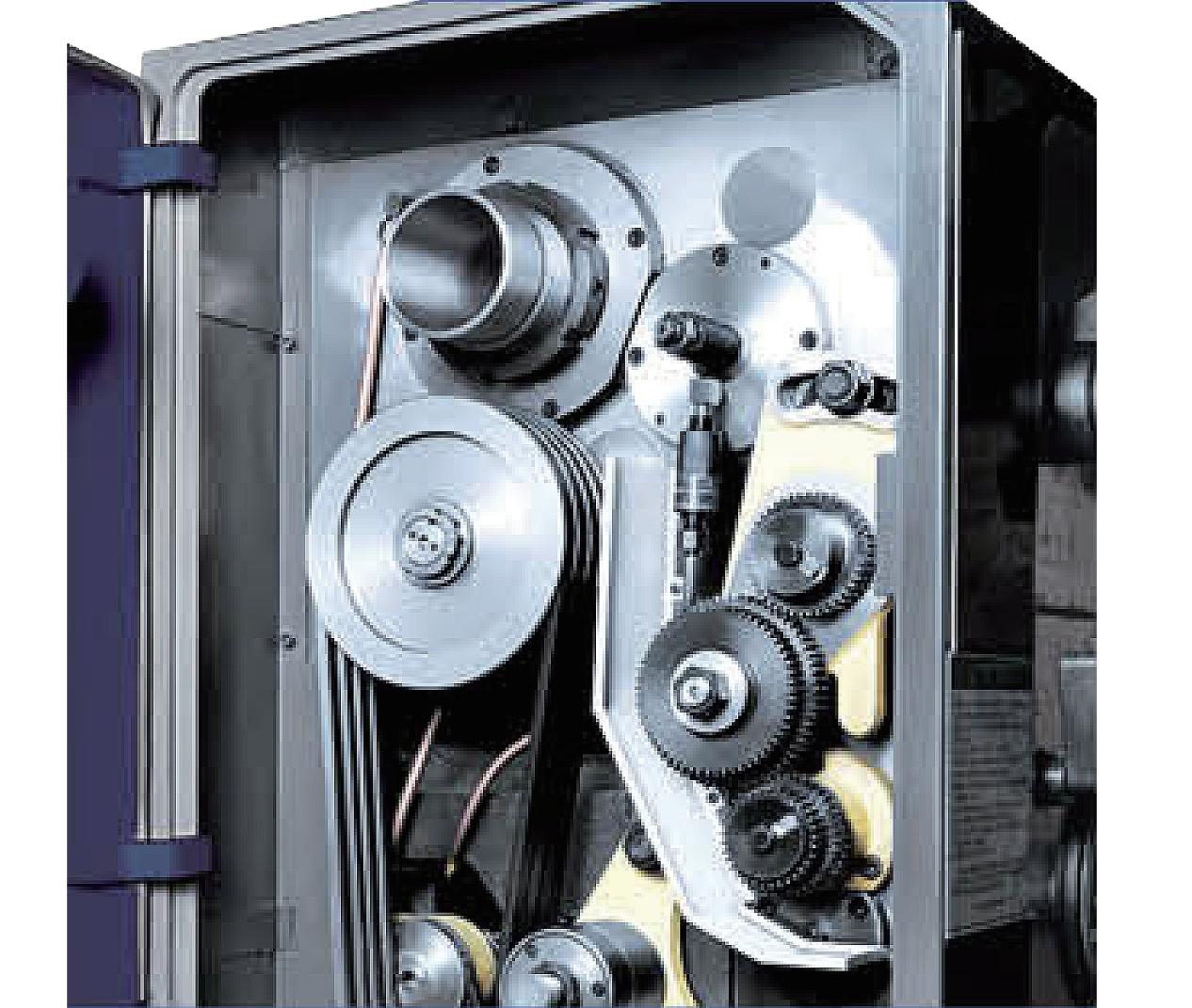

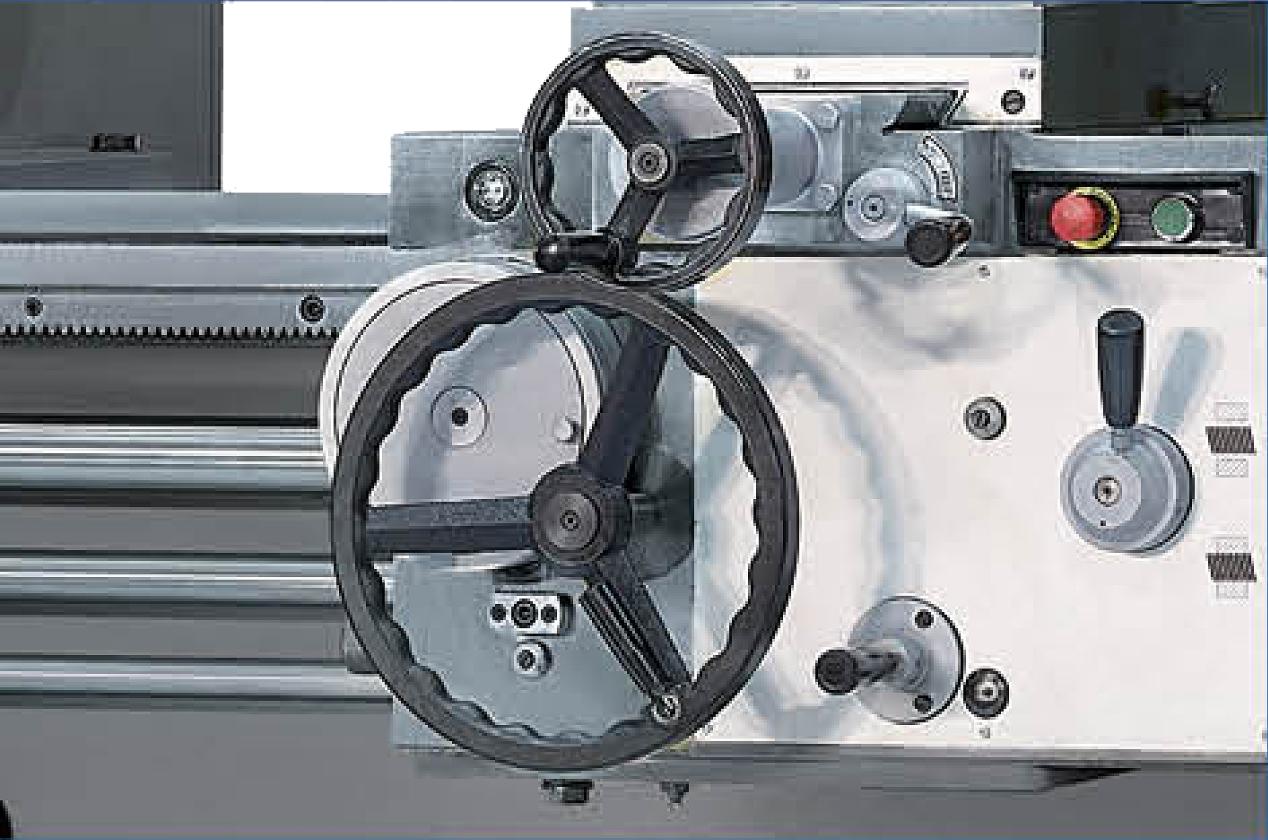

The carriage box is equipped with a visual single-hand rapid traverse mechanism, ensuring intuitive and convenient operation. The spindle reversal and braking process employs hydraulic closed-loop control, complemented by a dual-hand/foot braking system, enabling rapid response and ample safety redundancy. The machine's structural rigidity and transmission rigidity are both enhanced, enabling high-precision steady-state cutting and heavy-duty machining with large allowances. The tailstock integrates a dial and clear scale markings, providing full visualization for alignment operations. The machine features a modular protective exterior design, eliminating dead angles for cleaning and maintenance. The spindle box utilizes a forced oil circulation lubrication system, while the cooling unit strictly adheres to the safety standard of liquid-electric separation, balancing aesthetic orderliness with operational safety.

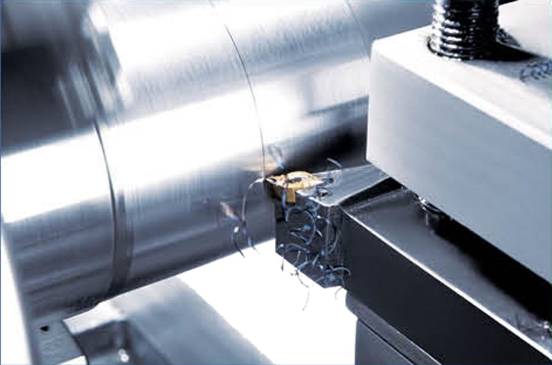

This series of equipment covers all categories of turning processes, including precision machining of internal and external cylindrical surfaces, conical surfaces, complex rotary curved surfaces, and end faces. It supports the turning formation of four types of standard threads: metric, imperial, module, and diametral pitch. Additionally, it can perform broaching operations for oil grooves and keyways. Suitable for cutting operations on cast iron, steel, and various non-ferrous metals, it serves a wide range of industries such as automotive manufacturing, petrochemicals, rail transit, and general machinery processing. The products are exported in bulk to over 30 countries and regions across Europe, the Americas, Asia, Africa, and Oceania.
