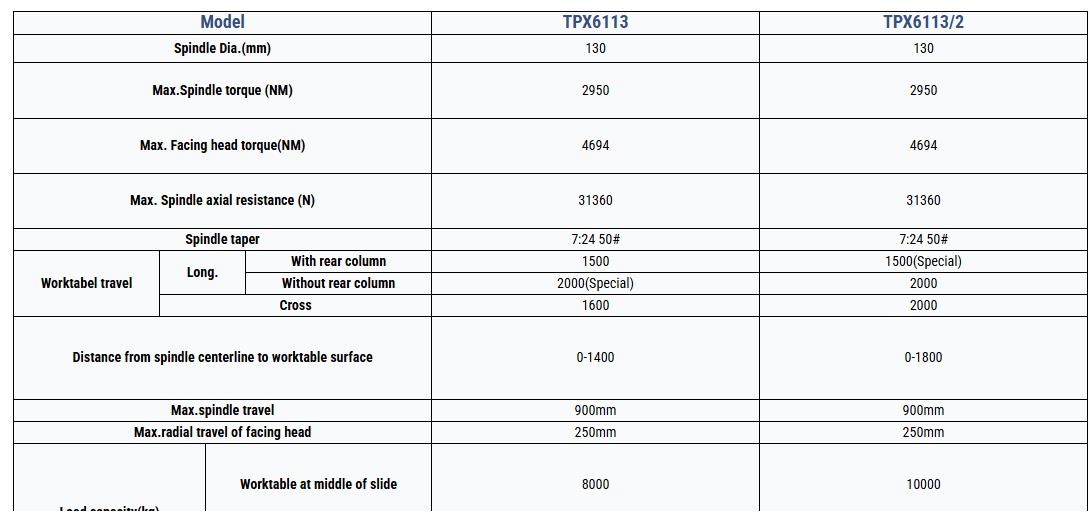

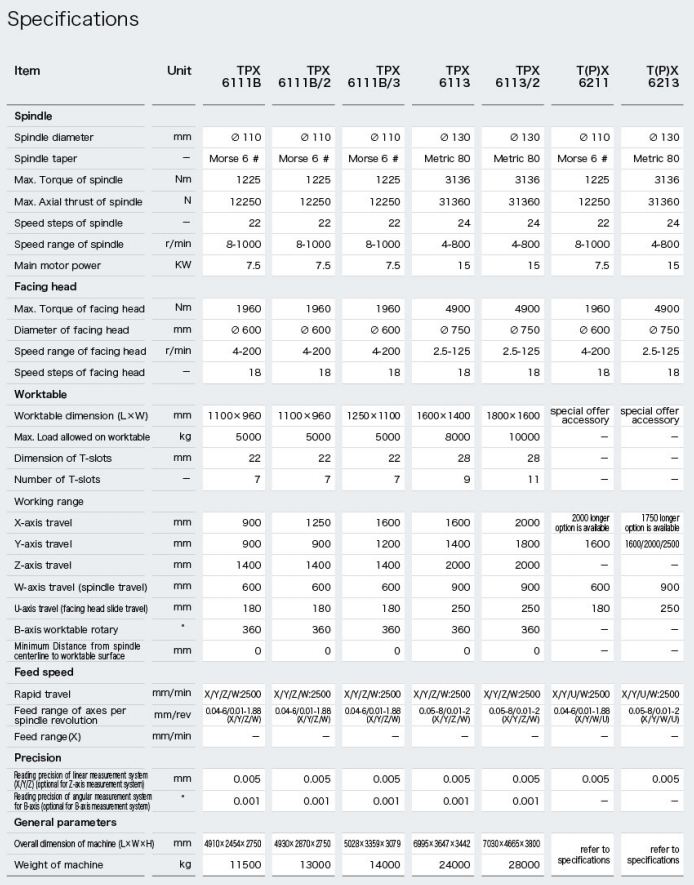

TPX6111B, TPX6111B/2, TPX6111B/3, TPX6113, TPX6113/2

The TPX series horizontal milling and boring machines are built on a proven classic design, engineered to handle both rough and precision boring operations, with full capability for milling large-scale and box-type structural components.

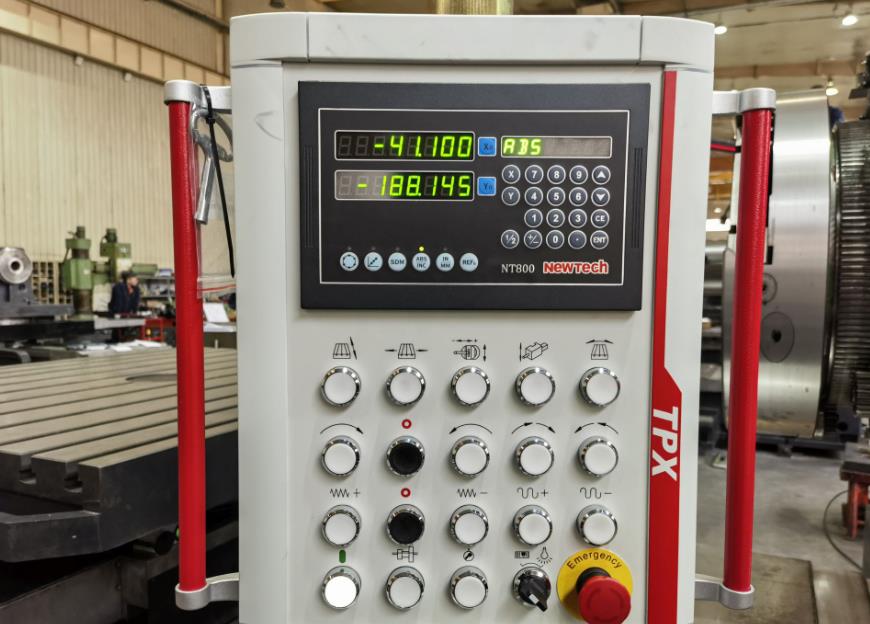

These machines deliver exceptional performance in inner hole boring, cylindrical turning and grooving processes, all realized through the radial feed motion of the facing plate. Equipped with a 4×90° optical positioning device, the equipment guarantees consistent machining accuracy even when processing extra-large workpieces, while the high-precision digital readout measurement system reliably secures coordinate positioning and scribing accuracy.

  • The oversized machine bed is integrated with an integral auxiliary guideway for enhanced structural rigidity

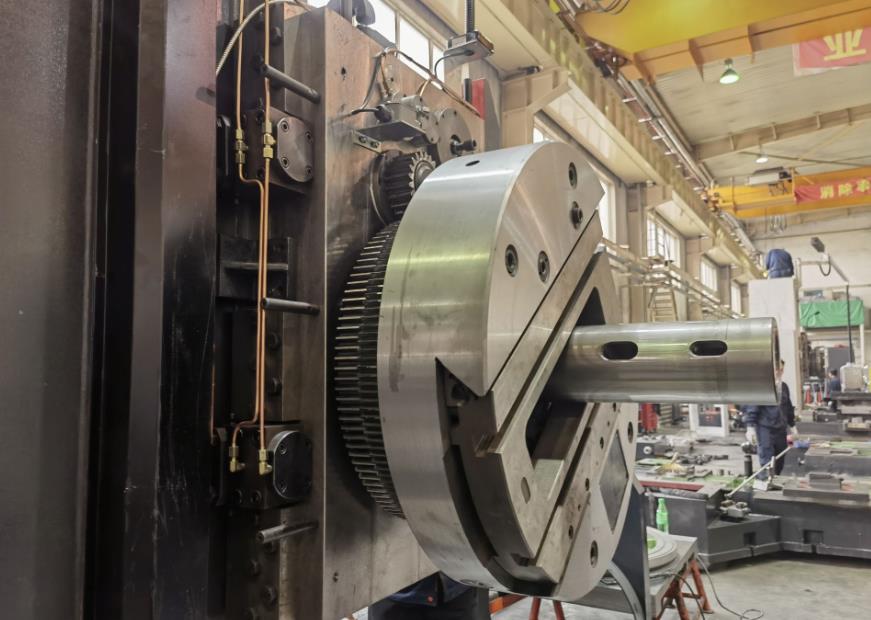

  • The spindle system adopts a three-layer composite structure, composed of the facing head spindle, hollow spindle and boring spindle

  • The spindle features disc spring clamping and hydraulic unclamping mechanism, which greatly simplifies tool change and handling operations
