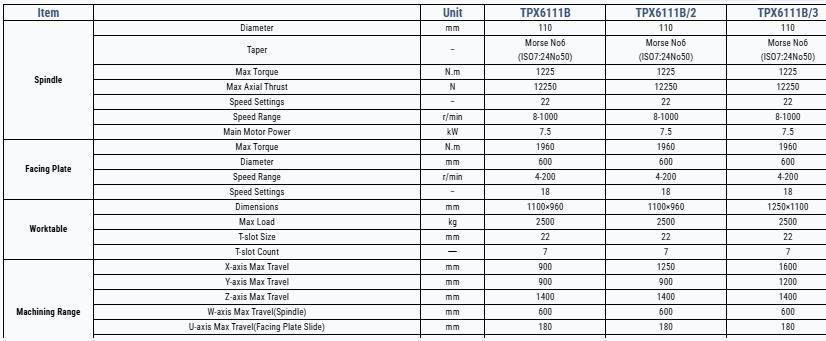

TPX6111B TPX6111B/2 TPX6111B/3

The spindle taper specification is 7:24 No.50, and the machine tool is equipped with an automatic loosening and pulling tool device, which greatly reduces the auxiliary time for tool clamping and reduces the labor intensity of operators. At the same time, the spindle can maintain high-precision operation for a long time.

All coordinate axis movements of the machine tool, including the spindle, the sliding seat of the rotary table, the spindle box, the longitudinal and transverse movements of the worktable, and the rotary movements of the worktable, are driven by an AC servo motor installed on the bed. Power transmission is completed through a gearbox and an electromagnetic clutch, and feed stepless speed regulation can be achieved through setting buttons, synchronously displaying the current feed speed value.

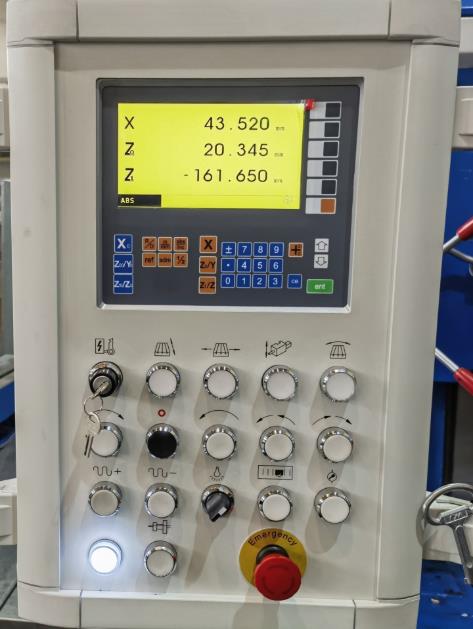

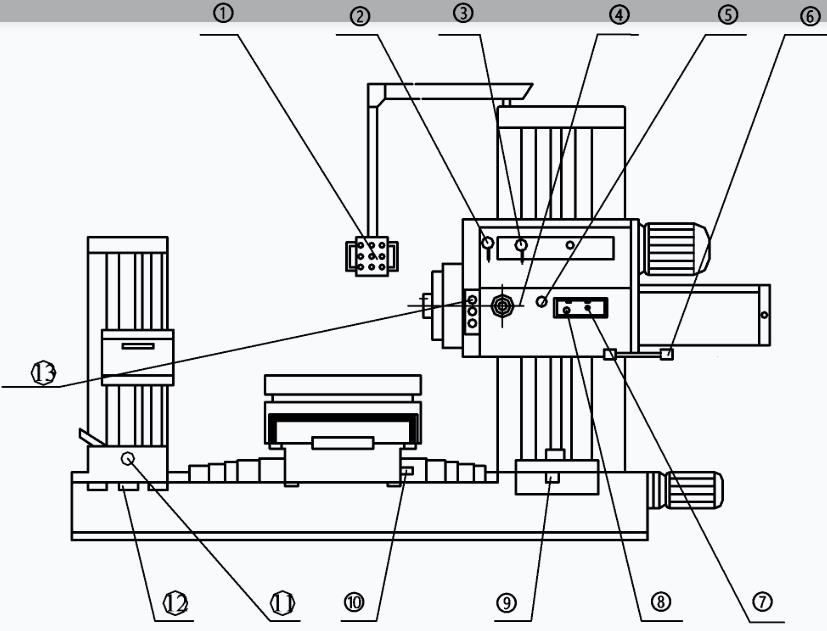

The definition of machine coordinate axes is clear: the vertical axis is the axis for the spindle box to move up and down, the horizontal axis is the axis for the worktable to move laterally, and the vertical axis is the axis for the worktable to move longitudinally. A new digital display with memory function can be optionally equipped, and the entire machine has complete functions and excellent machining accuracy.
