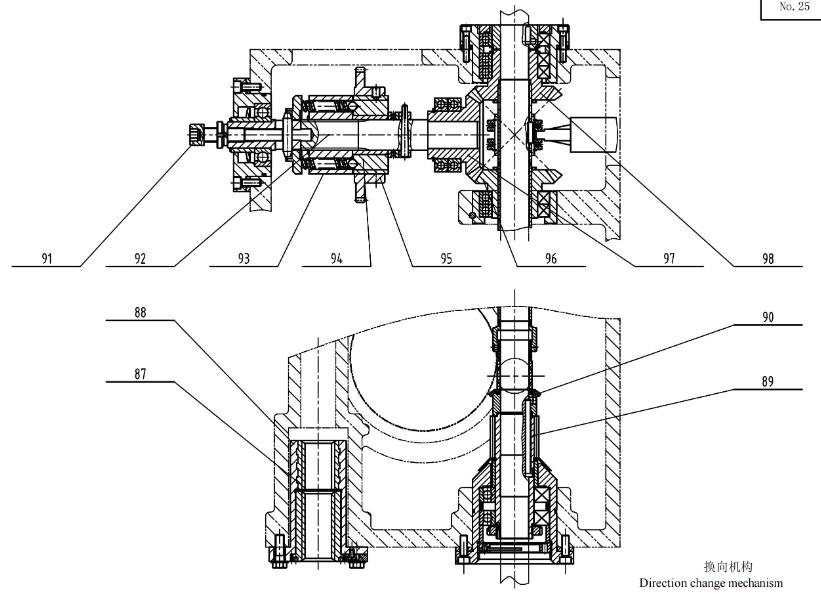

TPX6111B List of Spare Parts

The spindle adopts 7:24 No.50 taper. The machine is equipped with an automatic clamping/unclamping device, which greatly shortens the tool clamping auxiliary time and reduces labor intensity. The spindle maintains excellent long-term accuracy stability.

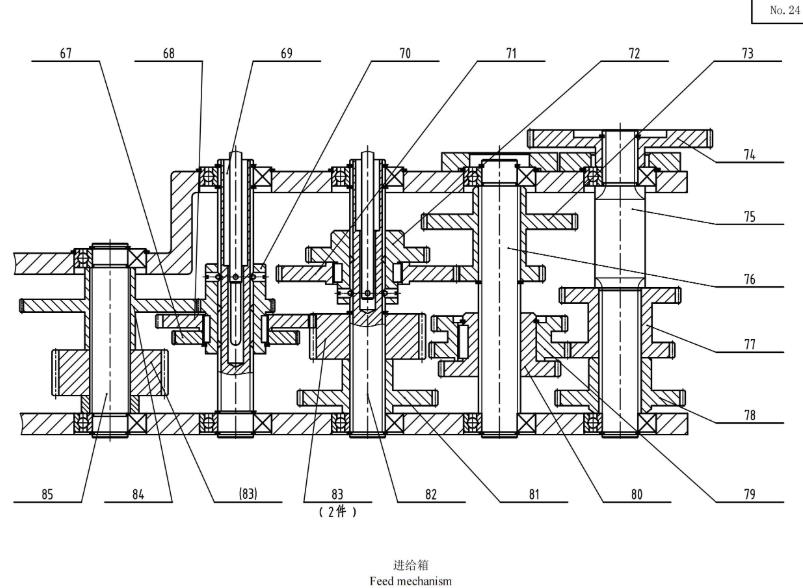

All motion axes, including the spindle, facing head slide, spindle box, table longitudinal and cross movement, as well as table rotation, are driven by AC servo motors mounted on the machine bed. The power is transmitted through gearboxes and electromagnetic clutches, enabling stepless feed speed setting via operation buttons, with the current feed speed displayed in real time.

The vertical axis corresponds to the up-down movement of the spindle box, the traverse axis corresponds to the cross movement of the worktable, and the longitudinal axis corresponds to the longitudinal movement of the worktable. A new-type digital display meter with memory function is available as an optional configuration, making the machine fully functional and highly accurate.
