CW80/110 Series Wearing Parts

Routine maintenance of equipment is essential to ensure its optimal performance, as it not only effectively extends the service life of the equipment but also significantly enhances production efficiency.

Routine inspection: A comprehensive periodic inspection and maintenance must be conducted after the equipment has operated for 500 hours. This process is primarily carried out by the equipment operator, with the assistance of inspection and maintenance personnel. The power supply must be disconnected before the operation begins.

Periodic maintenance: After operating for a certain duration, components in contact with each other will wear down, gradually affecting the overall performance of the equipment. To ensure operational accuracy, systematic inspections must be conducted on a regular basis. This task is typically carried out by equipment operators under the guidance of inspection and maintenance personnel.

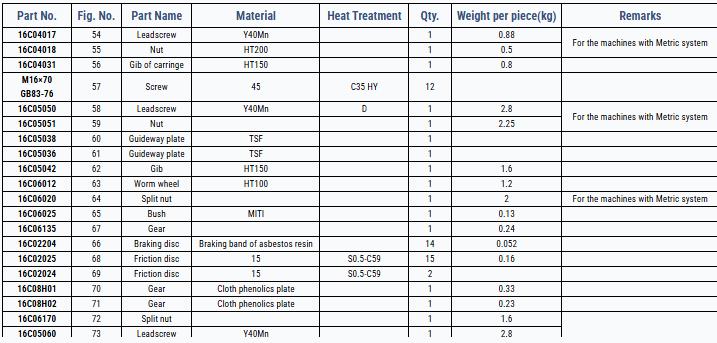

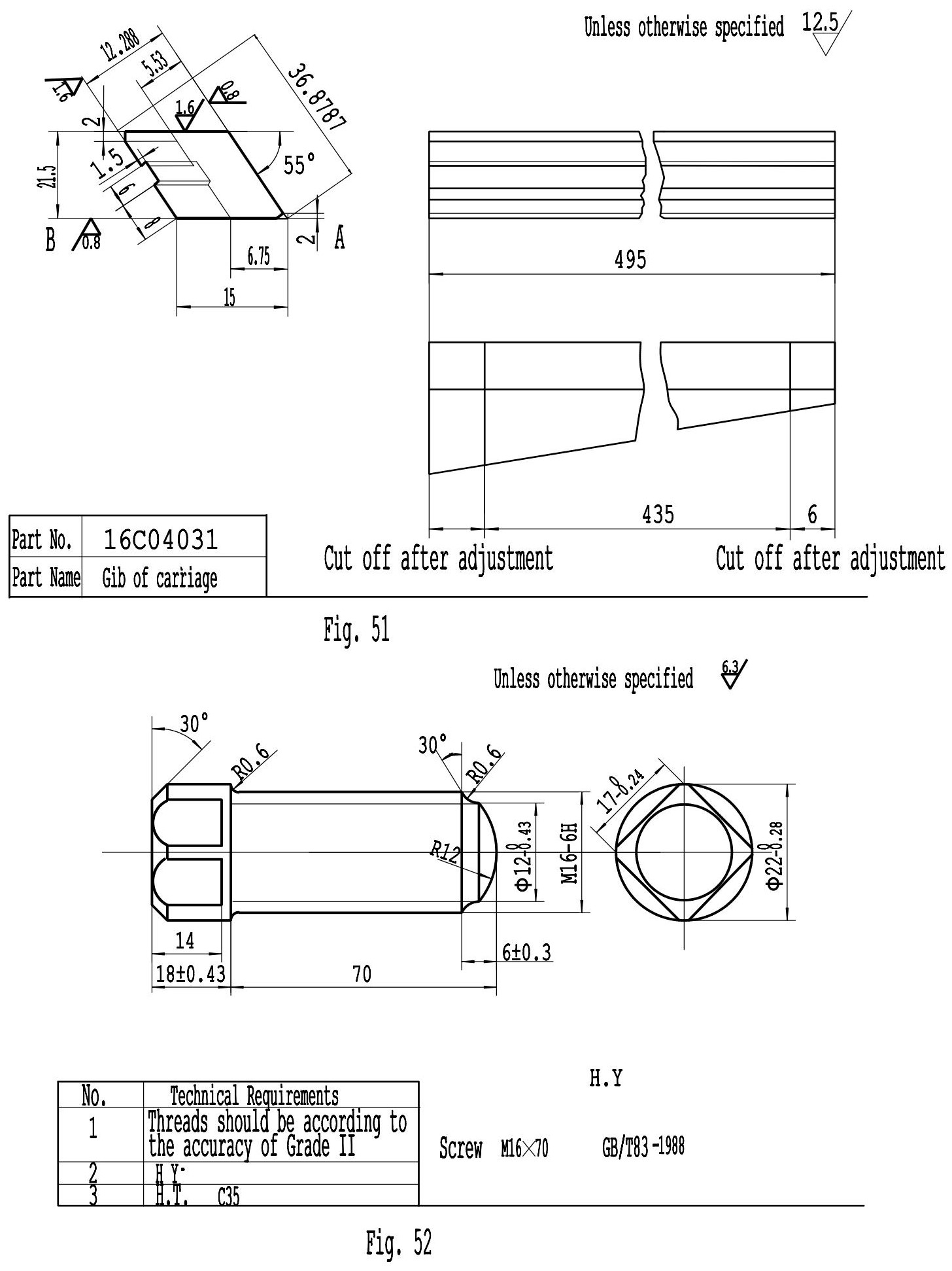

16C04031 Gib of Carringe & M16×70 GB83-76 Screw
