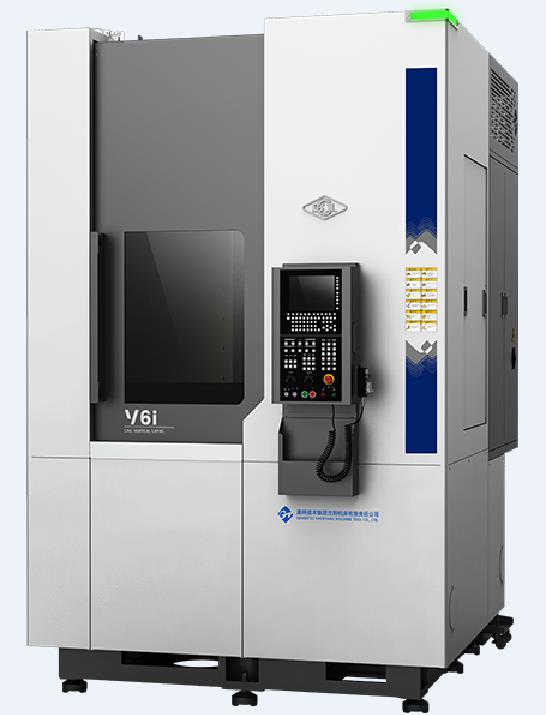

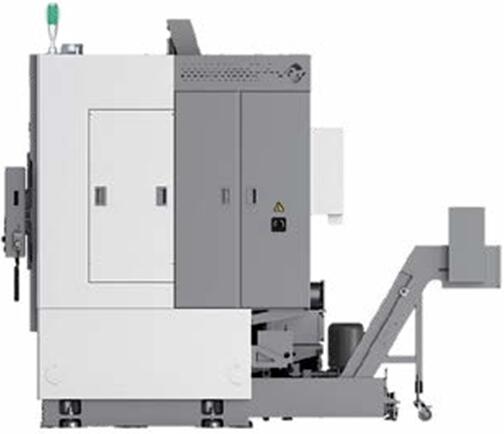

V6i vertical cnc lathe

V serial CNC vertical latheis cost-effective, intelligent lathes designed to meet general industrial needs, offering a balance of economy, environmental friendliness, and high efficiency.

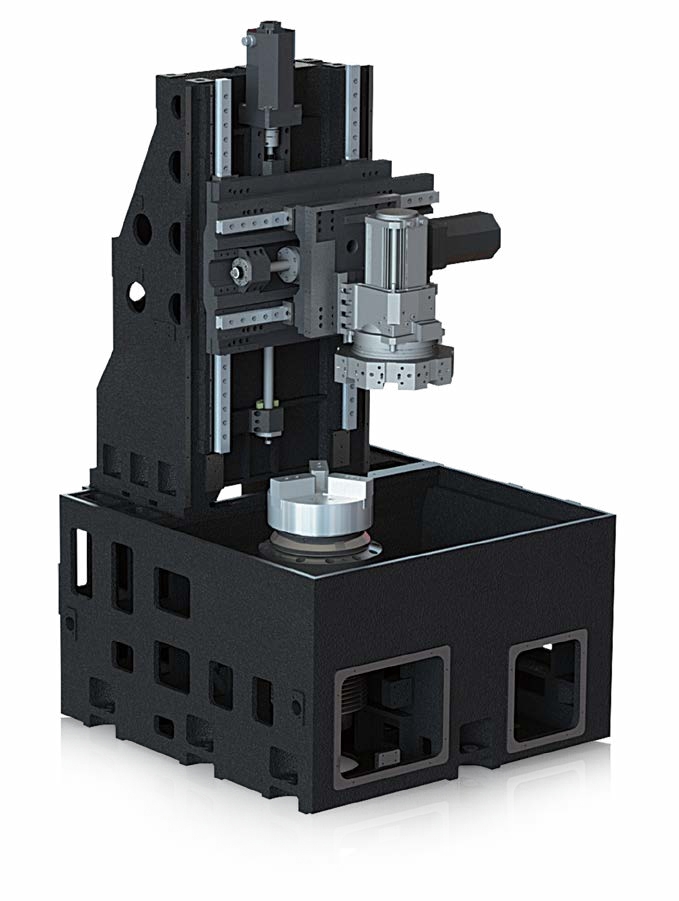

These lathes are equipped with a FANUC CNC system, a spindle unit, a main servo motor, an 8-station servo turret, dual-axis servo motors, and linear guideways. Featuring a fully enclosed protective structure, the machine combines high rigidity with excellent dynamic performance, ensuring structural reliability and ease of operation.

They are suitable for machining various disc-shaped and short shaft components, capable of producing features such as end faces and end-face grooves, external and internal threads, grooves, and rotational curved surfaces. The machines achieve machining precision within the IT6–IT7 range and can attain a surface roughness of up to Ra1.6 under optimal cutting conditions. They are ideal for the efficient, high-volume, and high-precision machining of rotational parts across industries such as automotive, motorcycle, bearing manufacturing, electronics, aerospace, defense, and non-ferrous metal processing.
