The core working principle of smtcl CNC machine tool

The core working principle of smtcl CNC machine tool

1. Drawing programming: Engineers write G-code and M-code programs based on part drawings.

2. System reading: The CNC system receives program instructions, parses coordinates, speed, feed, and tool change instructions.

3. Servo drive: The servo motor, screw, and guide rail drive the spindle, tool holder, and worktable to move accurately.

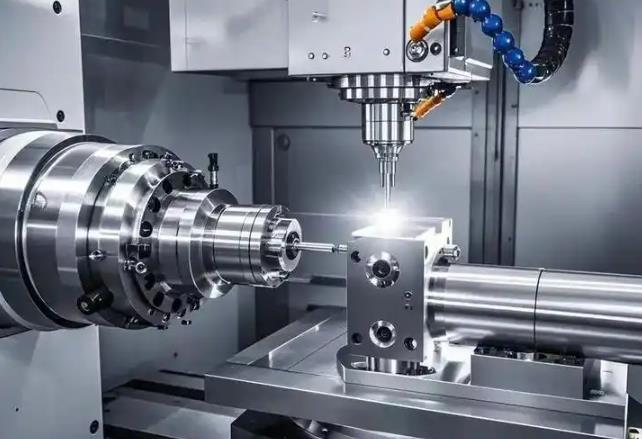

4. Automatic cutting: The tool automatically cuts metal according to the trajectory, with full automation and minimal manual intervention.

5. Repetitive mass production: The program can be written once and can be processed infinitely, with uniform part errors.
